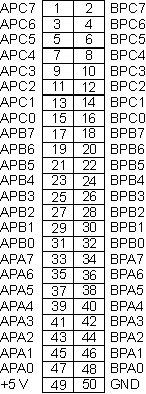

Cable Assembly Connector Pin Assignments for pins 1 through 50 of the PC-DIO96 I/O Connector

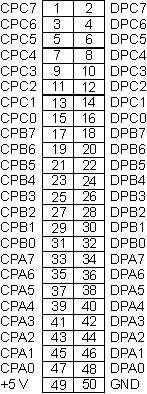

Cable Assembly Connector Pin Assignments for pins 51 through 100 of the PC-DIO96 I/O Connector
The following diagrams below show the pin assignments for the breakout cable assembly for the PC-DIO96:
|
|
Cable Assembly Connector Pin Assignments for pins 1 through 50 of the PC-DIO96 I/O Connector |
Cable Assembly Connector Pin Assignments for pins 51 through 100 of the PC-DIO96 I/O Connector |
